সিএনসি টার্নিং-মিলিং সেন্টার

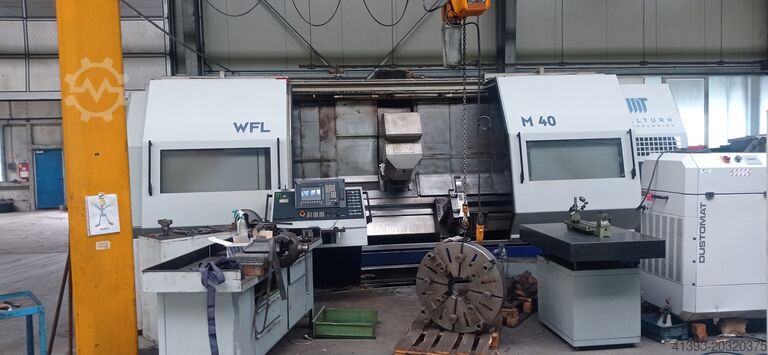

WFL MillTurn M40

Turning length: 3,000 mm
Swing diameter over cross slide: 520 mm
X-axis travel: 600 mm
Y-axis travel: 150 mm
Z-axis travel: 3,150 mm
Swing diameter: 520 mm
Turning length: 3,000 mm
Control: SIN 840 D Siemens
Z-axis: 3,150 mm
Guodpfexpfd Dsx Aa Ijb
Z-axis feed rate: 1 – 40,000 mm/min
Rapid traverse Z-axis: 40.00 m/min
X-axis: 600 mm
X-axis feed rate: 1 – 30,000 mm/min
Rapid traverse X-axis: 30.00 m/min
Main spindle S1
Spindle speed range: 1 – 3,300 rpm
Drive power at 100% load: 29.00 kW
Spindle nose DIN 55026 – size A11
Spindle diameter at front bearing: 160 mm
Spindle bore: 115 mm
C-axis: 360 x 0.001°
Milling spindle S2
Tool holder: Capto C6
Infinitely variable speed range: 1 – 6,000 rpm
Y-axis: -100 / +150 mm
B-axis: -110 / +110°
Tool magazine with 100 stations
Total power requirement: 145 kW
Machine weight approx.: 24 t
