TA Technology OBS1300-A

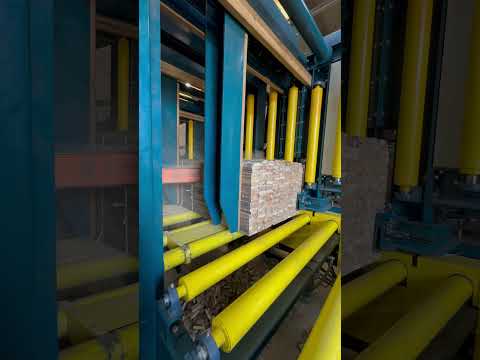

For industrial sale, a fully automated saw for cutting lumber packages and structural elements – a complete technological line for formatting packages to a specified length.

The device is designed for use in sawmills and wooden structure manufacturing plants, where process efficiency, consistent cutting length, and package stabilization during cutting are crucial.

Inspection and testing are possible at Delfina 20, 98-354 Siemkowice, POLAND.

Operating parameters:

• Max. package: 1300 × 1300 mm (width / height)
• Max. input package length: 6000 mm
• Max. cutting length: 3000 mm
• Min. cutting length: 600 mm
• Max. package weight: 8000 kg
• Cutting accuracy: ±2 mm

The minimum package cross-section is determined by the extreme position of the hydraulic clamps – cutting packages with smaller dimensions is permissible.

Cutting module:

• Main motor 11 kW
• HIWIN linear guides with increased load capacity
• GB TITANIUM guide + STIHL chain
• Automatic guide lubrication system
The rigid construction of the unit ensures stable operation and consistent cutting length.

Package stabilization:

• System of 6 hydraulic clamps
(top + side + front and behind the cutting line)
• Package support on vertical rollers
• Elimination of package movement during saw entry

Process automation:

• Intelligent package strapping system
• Automatic determination of strapping locations
• Option for automatic initial cutting
• Buffer for cut packages

Transport and handling:

• Transverse loading conveyor
• Transverse unloading conveyor
• Automatic package pickup after cutting

Waste removal:

Ljdpfx Ajxn Rt Usk Terr
• Belt conveyor for waste (~10 m)
• Hydraulic tilting rollers of the cutting module
(protection against large waste jamming)

Automation:

• Siemens PLC controller
• Yaskawa servo drive and inverters
• 21–22” operator panel
• Remote service and diagnostics

Additionally:

• Winter package – heating of the control system
• Transport to the customer – included in the price
• Installation – included in the price
• Commissioning – included in the price
• Operator training – included in the price
