CNC টার্নিং ও মিলিং সেন্টার

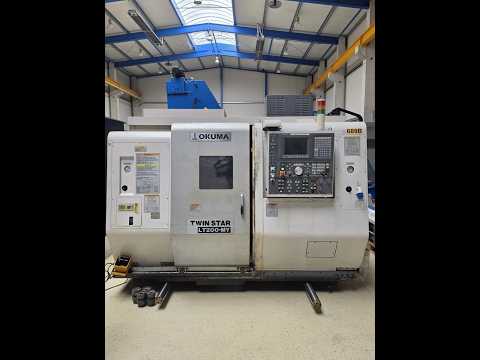

OKUMA LT 200-MY

CNC turning and milling center with C-axis and Y-axis,
2 turrets, and subspindle.

Technical details
turning diameter 210 mm
turning length 700 mm
control Okuma OSP-E 100 L
total power requirement 35,7 kVA
weight of the machine ca. 7,1 t
dimensions of the machine ca. 2660 x 2000 x 2330* mm

CNC control: Okuma OSP-E 100 L
Maximum turning diameter: 210 mm
Swing over bed: 400 mm
Distance between spindle noses: 960 mm

Main spindle:
Spindle bore: 53 mm
Speed range: 50 to 6000 rpm
Motor power: 11/7.5 kW
Subspindle:
Spindle nose: JIS A2-6
Speed range: 38 to 5000 rpm
Motor power: 11/7.5 kW

Z-axis:
Travel: 700 / 700 mm (ZA + ZB)
Rapid traverse: 40000 mm/min
W-axis:
Travel: 940 mm
Rapid traverse: 40000 mm/min
Ndedpszzwmujfx Alzec
X-axis:
Travel: 167 / 192 mm (XA + XB)
Rapid traverse: 30000 mm/min
Y-axis:
Travel: 92 mm (+50/-42 mm)
Rapid traverse: 15000 mm/min
C-axis:
Indexing: 360 x 0.001 deg.
Rapid traverse: 400 rpm

Disc turret:
2 x 12 stations
Tool holder mount: VDI 30 mm
Power of driven tools: 4 kW

Total connected load: 35.7 kVA
Machine weight: 7100 kg
Machine dimensions: 2660 x 2000 x 2330 mm*
Plus swarf conveyor and bar loader

Accessories
FMB Turbo 5-42/6200/A bar loader, year of manufacture 2005
Chip conveyor
Coolant system
Collet chuck for main and subspindle
Both turrets equipped with tool holders
Machine documentation.
