মোরি সейки ZT1500YB

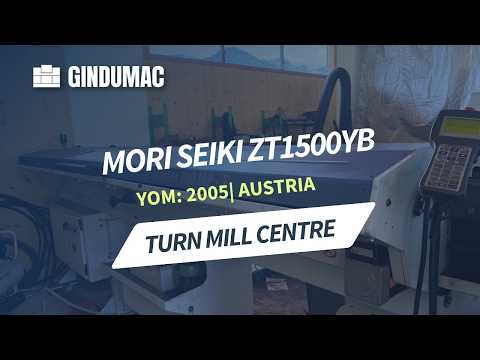

MORI SEIKI ZT1500YB

This 5-axis MORI SEIKI ZT1500YB was manufactured in 2005. It features a maximum turning diameter of 190 mm and a maximum turning length of 235 mm. The machine includes a robust turret with 12 stations and a rapid traverse speed of up to 24,000 mm/min. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI ZT1500YB horizontal turning machine we have for sale. Contact us for further details.

- Head 1 Operating Time: 36,316 h- Head 1 Machining Time: 18,301 h- Head 2 Operating Time: 36,324 h- Head 2 Machining Time: 11,026 h- Turret Type: 12 stations [16 stations optional]- Number of Tools in Turret: 12 [16]- Shank Height for Square Tool: 20 mm- Shank Diameter for Boring Bar: 25 mm- Driven Tool Spindle 1 & 2 Speed: 6,000 rpm- Driven Tool Spindle 1 & 2 Capacity: Drill max. 13 mm diameter, Thread max. M12- Rapid Traverse Speed: X1, X2: 18,000 mm/min; Z1, Z2: 24,000 mm/min; Y: 6,000 mm/min; B: 24,000 mm/min- Jog Feedrate: X, Z, B: 0-1260 mm/min- Spindle Motor 1 & 2 (30 min / continuous): 22 / 18.5 kW- Driven Tool Drive Motor Spindle 1 & 2 (5 min / 15 min / continuous): 5.5 / 3.7 / 2.2 kW- Axis Motors: X1: 3 kW; X2: 2.5 kW; Z2: 3 kW; Y: 1.6 kW; B: 3 kW- Hydraulic Pump Motor: 0.75 kW- Lubricant Pump Motor: 0.02 kW- Coolant Pump Motor: 0.6 kW x 2, 1.2 kW x 1- Cooling Oil Pump Motor: Compressor: 0.65 kW; Lubricating pump: 0.4 kW; Blower: 0.045 kW- Required Power Supply: 63.37 kVA- Compressed Air Supply: 0.5 MPa, 100 L/min - Max. Workpiece Swing Diameter: 310 mm - Max. Distance Between Spindle Noses: 1000 mm- Max. Turning Diameter: 190 mm- Max. Turning Length: 235 mm- Standard Turning Diameter: 170 mm- Max. Bar Capacity: 65 mm- X-Axis Travel (Nr. 1 & Nr. 2): 140 mm- Z-Axis Travel: Z1: 700 mm, Z2: 690 mm- Y-Axis Travel: ±50 mm- Spindle 2 Travel (B-Axis): 775 mm- Number of Spindle Speed Ranges: 1 step- Spindle Nose (Spindle 1 & 2): JIS A2-6- Spindle Speed Range (Spindle 1 & 2): 50-5000 rpm- Spindle Bore (Spindle 1 & 2): 73 mm- Min. Spindle Indexing Angle: 0.001° - Spindle Bearing Inner Diameter: 120 mm- Chuck (Spindle 1 & 2): 8" power chuck & hollow clamping chuck- Hydraulic Oil Tank Capacity: 10 L- Lubricant Tank Capacity: 6 L- Coolant Tank Capacity: 285 L- Oil Cooler Tank Capacity: 12 L- Floor Space (without chip conveyor): 3702 x 2066 mm- Voltage: AC 200 V- Phase: 3 Phase- Frequency: 50 Hz- Full Load Current: 182 A- Spindle Motor Current Rating: 122 A- Interrupting Capacity: 5 kA- Rated Power: 63 kVA

Technical Specification
Counter Spindle Yes
Dusdezk Ev Nepfx Aaysw
Driven Tools Yes
