Elালাই টার্নটেবল

MÜLLER MO-DT 20.000

Technical details:

table load: 22 t
table diameter: 2500 mm
Total power requirement: 9,6 kW
max. table load: 22.000 daN / 22000kg
table rotating: links/rechts Grad
table - inclinable: 0 - 120 Grad
swival range +/-: 120 Grad
Lhjdpou Nkx Iefx Aktsk
height of the swivelling axis: 1700 mm
machine weight approx.: 12000 kg
rotary table revolutions per minute : 0,05 - 1,0 U/min
connected load: ca. 5,0 kVA
dimensions LxWxH: ca. 4,5 x 2,5 x 2,3 m

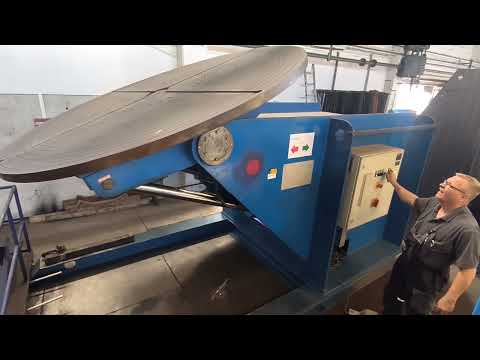

Welding positioning turn-tilt table developed and manufactured by Müller Opladen ARC KON EWeding GmbH.
Machine frame solid, welded steel construction with ball-bearing tilting device
Table with centering grooves and T-slots for M24 according to DIN 650.
Infinitely variable rotary drive from 0.05 - 1.0 rpm.
Height to center of swivel axis 1700 mm
hydr. tilt adjustment, infinitely variable from 0 - 120°
Drive is designed for a torque of approx. 40,000 Nm at the turntable

Accessories:
1x 2-row foot switch
1x remote control
1x working platform

*
