ভার্টিক্যাল মেশিনিং সেন্টার

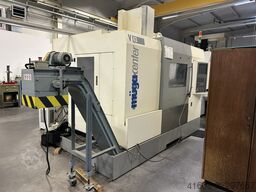

MÜGA V 43

Technical details
x-travel 1100 mm
y-travel 600 mm
z-travel 510 mm
Table dimensions 1300 x 600 mm
table load 1,0 t
tool taper ISO 40 DIN 69871A
spindle turning speed range 60 - 12000 U/min
rapid traverse 32 m/min
power capacity 10 / 17 kW
no. of tools in the magazine 32 Stück
tool length - max. 300 mm
Tool diameter 76 / 127 mm
weight of tools max. 8 kg
tool changing time 2,5 sec
total power requirement 30 kW
weight of the machine ca. 8,5 t
dimensions of the machine ca. 4400 x 2250 x 2920 mm
Additional information
Machine with only 3.275 spindle running hours !
Dodpfezktb Hox Anpskp

* Heidenhain iTNC 530 CNC control
* 32-station ATC
* Internal coolant system: 20 bar
* Coolant tank: 480 l
* Chip conveyor
* Heidenhain glass scales in X/Y/Z
* Oil-cooler
