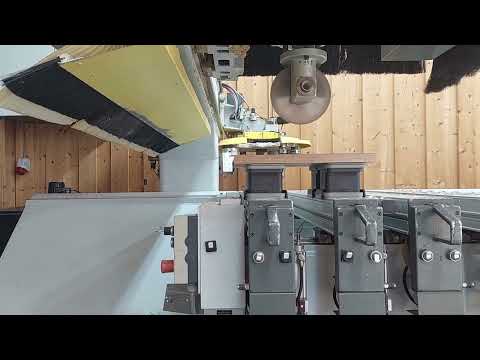

HOMAG BOF 41 K

4-AXIS CNC MACHINE FROM A PART-TIME JOINERY, VERY GOOD CONDITION

Workpiece dimensions max.:
Length 3,000 mm
Width 1,050 mm
Thickness 60 mm with standard clamps
120 mm with clamping templates (customer-supplied)

2 clamping stations for machining 2 identical workpieces,
resulting in halved changeover times

6 clamping consoles with tubeless vacuum guidance
12 vacuum suction cups
Machine zero point at the front left

Chip conveyor belt

Main spindle 7.5 kW, HSK 63 F S1
incl. stepless speed control 1,500 - 18,000 RPM
C-axis for main spindle

Tool changer magazine, 12-position,
mounted on the support and moving with the X-axis

Drilling head, 17 spindles, vertical, 7,500 RPM
Spindle spacing 32 mm

Drilling head, horizontal, 4 spindles

Control system:
-----
HOMATIC NC 83
Operating system OS-9 with WINDOWS interface
WOODWOP 4.5

Connection values:
380 V / 50 Hz
Control voltage:
220 V 50 Hz

Additional accessories:
-----
Anti-slip mats in front of the machine
Adapter unit for saw with 2 outlets

Maintenance performed:
- Main spindle completely overhauled in 2019, since then max. 100 hours of use
- X-axis bearings completely new
- Water hoses partially replaced
- New vacuum pump Becker
- Cooling unit for main spindle new
