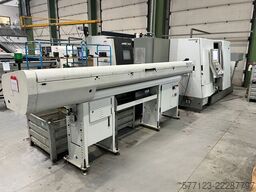

Gildemeister Sprint 42 - linear inkl. Stangenlader

The Sprint 42 Linear from DMG Gildemeister is a CNC turning/milling center with 6 linear axes and 2 C-axes.
Direct drives enable high acceleration and precise machining operations.
It is suitable for demanding series production of parts with a bar diameter of up to 42 mm.

Year: 2007

Spindles: Main and counter-spindle, each up to 6,500 rpm; bar passage through main spindle 42 mm, counter-spindle 38 mm.

Tool capacity: 26 stations, including up to 11 driven tools; turret with Y-axis for milling and threading operations.

Axes / Travels:
Slide 1: X1 = 65 mm, Z1 = 350 mm, Y1 = 120 mm
Slide 2: X2 = 326 mm, Z2 = 320 mm, Y2 = 265 mm
Djdpfx Anezkgqzopekp
Rapid traverse rates: up to 30 m/min (X1, Z1, X2, Z2), Y2 up to 18 m/min
Control system: FANUC 160i-TB with 15" DMG SlimLine panel

Including IEMCA Boss 545-E bar feeder

The IEMCA Boss 545-E bar feeder (Type 32 LL, year of manufacture 2007) is included in the scope of supply and enables the continuous feeding of material up to Ø 42 mm.
It operates with 400 V / 50 Hz and requires 6 bar of air pressure; its own weight is approximately 860 kg.

Main spindle newly bearing: The main spindle has already been overhauled (new bearing).

Inspection & Collection: An on-site inspection is possible.

If you are interested or have questions about technical details, please do not hesitate to contact us.
