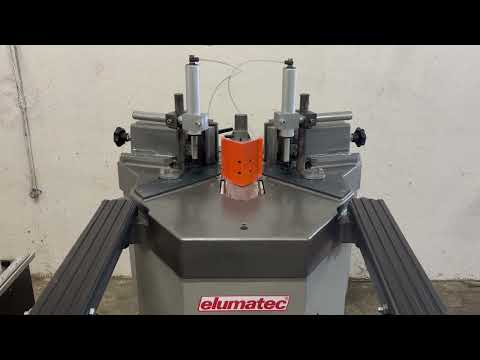

Elumatec EP 124

The ideal machine for curtain wall elements
For pressing profiles with large dimensions with the highest quality requirements
The machine is easy to adjust and operate and has short changeover times thanks to a simple blade-changing system
Extremely high pressing force due to large-volume bellows cylinder (maintenance free)
Tedoz H Afwepfx Ag Njc
With retractable, hydro-pneumatically controlled counter bearing
The specially-designed counter bearing head allows pressing of frames with an inner dimension starting at 150 mm (clear dimension)
The pressing depth can be set separately for each tool carriage
An adjustable pressing blade is also available to compensate for the profile chamber offset

EP 124 / EP 124/20
Pressing height 140 / 200 mm
Pressing force 70 kN (7 t)
Pneumatic drive
Power supply 230 V, 1~, 50/60 Hz
Compressed air supply 7 bar
Air consumption per working cycle 35 l
Length 1,100 mm, depth 950 mm, height 1,230 mm, weight 545 Kg

We can ship the machine to your address via company DSV
