Doppstadt AK 560

Equipment:

Basic Package AK560 Eco-Power:

- Central axle trailer chassis with 2 axles, 80 km/h road approval
- Brake system incl. ABS and lighting according to EC directive
- 50 mm EC towing eye with bolt-on shoe
- Tyres 385/65 R22.5
- Hydraulically adjustable support leg
- Splash guards (inner and side-mounted mudguards)
- Permissible total weight 19,000 kg
- Mercedes/MTU diesel engine 6R1300, 390 kW at 2,000 rpm, meets EUROMOT IV emission standard
- Load-dependent feed control incl. automatic reversing scraper floor
- Fuel tank 450 litres
- Feed roller: length 1,690 mm, diameter 510 mm, fitted with tooth segments
- Four-row flail drum with 36 free-swinging cast steel flail holders and replaceable flail tips
- Standard: "Streusel" flail tip
- Centrally positioned lubrication strips
- Electric pump for operating cylinder functions (e.g. raising/lowering support foot and opening/closing rear basket, folding/unfolding rear conveyor, disengaging drive) when engine is off
- 24 V electric control system
- Separate control box at the rear of the machine

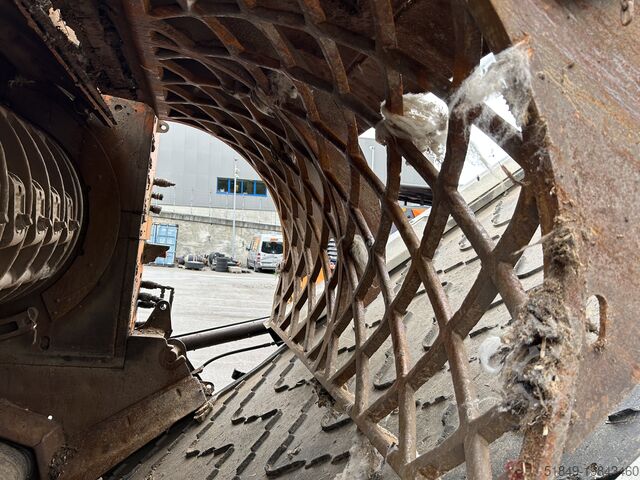

- Hydraulically folding fine shredding basket (mesh size between 30 - 280 mm, graded on request) incl. tailgate
- Scraper floor with 32 slats
- Complete remote radio control
- Preparation for travel drive
- Acoustic start-up warning
- Paint finish: RAL2011 deep orange

Optional Equipment:

Chedsw Swpfjpfx Acyjc
- Hydraulic travel drive
- Drawbar extension 400 mm
- Fuel tank 600 l
- Additional hydraulic connection 20 l/min
- Flail tip C1 bear paw with tungsten carbide
- Fine shredding basket
- Impact plate with strike bar
- Rear conveyor 4 m
- Separate drive for feed roller/scraper floor "Twin Drive"
- Reinforcement plates in the loading hopper
