DECKEL FP 1-ÜBERHOLT durch FPS-2012+TEILAPPARAT

DECKEL FP1 – Fully Refurbished (2012) by FPS (Germany) with Heidenhain Digital Readout + Tool Cabinet with Tools and Dividing Attachment

Since the overhaul, this machine has seen very little use and is therefore in like-new condition.

About FPS: Specialists in the complete refurbishment of DECKEL machines.

MANUFACTURER: DECKEL
MODEL: FP1
CONDITION: Refurbished (2012) – mechanically & electrically as new!
Iedpfxexywhcj Aafjan
LOCATION: Graz (Austria)

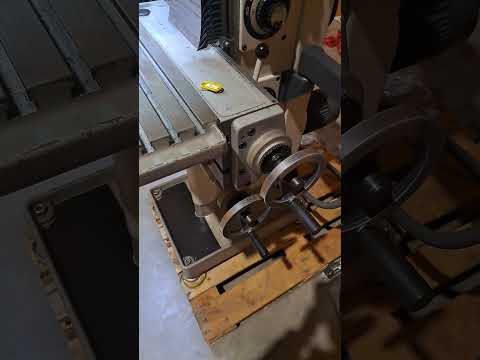

PHOTOS/VIDEOS: Please contact us for additional pictures and videos of the machine in operation.

Description:
This high-quality DECKEL FP1 milling machine has been fully refurbished, both mechanically and electrically upgraded to the latest technical standards. The machine was completely dismantled and cleaned, all guideways were ground, all mechanical wear parts and electronic components such as controls, drive motors, linear encoders, and much more were replaced, bringing the machine up to as-new condition.

As part of the modernization, a new touch-proof control cabinet and a new motor were installed.
All axes are equipped with HEIDENHAIN direct measuring systems (positioning accuracy 0.005 mm).

Installation of a new CE-compliant control cabinet according to the latest statutory regulations (BGVA 3 / DIN-EN 60204-1 New Machine Standard).

Controls, drive package, and drive motors were all completely renewed and brought up to the latest state of the art during the overhaul.

Technical Data:
Operation: Manual, with automatic positioning option
Control: 3-axis Heidenhain digital readout
Spindle speed range: 40 – 2000 rpm (geometrically graded with 16 speed steps)
Feed: 10 – 500 mm/min (stepless)
As part of the modernization, a new touch-proof control cabinet and motor were installed.
Rapid traverse: 1.2 m/min (stepless)
Quill: Vertical & horizontal travel, 60 mm, SK40
Travel (X/Y/Z): 300 / 150 / 340 mm
Measuring system: HEIDENHAIN direct measuring system on all axes (positioning accuracy 0.005 mm)
Table size: 600 × 210 mm
Table load: max. 200 kg
Machine weight: 710 kg including rotary table and milling head
Space requirement: 1600 x 1400 x 1750 mm (W / D / H)

Features:
Vertical and horizontal spindle
Milling head manually swivels ± 90°
Completely new electrics & drive packages
Completely refurbished – mechanically & electrically as new

Extras:
Z-axis protective bellows
Special paint finish
HEIDENHAIN direct measuring systems on all axes (positioning accuracy 0.005 mm)

Highlights:
Heidenhain digital readout for precise work
Control system, drive package, and drive motors were all completely renewed during the overhaul.

Original purchase price in 2012: €56,000 (net).

Contact us to receive a non-binding, attractive offer or to arrange a viewing appointment.
