বিছানার ধরণের মেশিনিং মেশিন

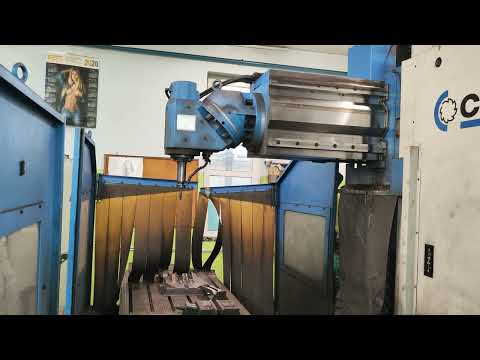

CME FS 2

Technical Specifications (CME FS-2)
Working Table:
Table clamping surface: 2000 x 850 mm
Maximum permissible table load: 3500 kg
T-slots: 1 x H-7 / 5 x H-10 (slot spacing: 100 mm)

Travels and Feeds:
X-axis travel: 1800 mm
Y-axis travel: 1000 mm
Z-axis travel: 1000 mm
Working feed rate: 5 - 5000 mm/min
Rapid traverse: 20,000 mm/min

Spindle and Drive:
Spindle motor power: 22 kW
Spindle taper: ISO-50 / DIN 69871
Spindle speed range: 50 - 4000 rpm

Accuracy and Construction:
Dcodpsztrt Hefx Ai Ren
Positioning accuracy (3 axes): +/- 0.005 mm
Repeatability (3 axes): +/- 0.005 mm
Ball screws (X, Y, Z): diameter 50 x pitch 10 mm
Total machine weight: 13,000 kg (13 tons)

Auxiliary Drive Motors:
Hydraulic motor power: 1.1 kW
Lubrication motor power: 0.4 kW
Coolant pump motor power: 0.3 kW
