ইনজেকশন মোল্ডিং মেশিন

BOY 90 E

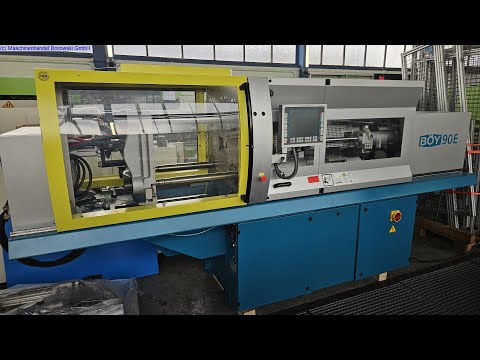

Dr. BOY 90 E

Stock No.: 503452
Manufacturer: BOY
Type: 90 E
Control System: Procan ALPHA
Year of Manufacture: 2012
Operating Hours: 49130 h

Technical Data - Clamping Unit
Hjdpfsz A A A Ijx Ap Aefl
Clamping Force: 900 kN
Tie Bar Distance (horizontal x vertical): 430 x 360 mm
Platen Size (horizontal x vertical): 635 x 610 mm
Minimum Mold Height: 250 mm
Maximum Mold Height: 725 mm
Opening Stroke: 475 mm
Ejector Stroke: 130 mm
Ejector Force: 20 kN
Centering of Moving Platen Diameter: 110 mm
Centering of Fixed Platen Diameter: 110 mm
Tool Weight: 800 kg

Technical Data - Injection Unit
Screw Diameter: 42 mm
Injection Volume: 214.7 ccm
Injection Pressure: 1724 bar
Screw Length: 20 l/d
Screw Stroke: 155 mm
Screw Speed: 280 min
Screw Torque: 700 N
Plasticizing Rate: 136 g/s PS
Number of Heating Zones: 4
Nozzle Distance: 250 mm

Dimensions & Weight
Machine Dimensions (L x W x H): 4.37m x 1.21m x 2.2m
Total Weight: 3730 KG

Equipment
Screen Text: German
Hydraulic Core Pull: 1x
Machine without material hopper
Machine without water manifold
Leveling elements
EUROMAP 67 Handling Interface
USB Interface
