BIESSE Akron 1440 A

BIESSE AKRON 1440 A

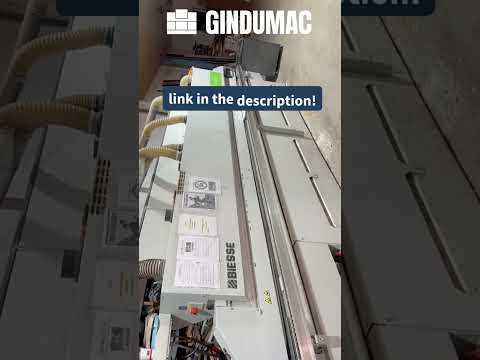

Edgebander manufactured in 2021. This BIESSE Akron 1440 A features a feed speed of 12–18 m/min and can process panel thicknesses from 10 to 60 mm. It includes automatic edgeband feeding from rolls and strips, along with a pre-milling unit and various trimming units for enhanced finishing. If you are looking to get high-quality edgebanding capabilities, consider the BIESSE Akron 1440 A machine we have for sale. Contact us for further details.

Technical specifications:
• Feed speed: 12–18 m/min
• Feed motor: 1.5 kW
• Panel thickness: 10–60 mm
• Edge thickness (from rolls): 0.4–3 mm
• Edge thickness (from strips): 0.4–12 mm
• Glue pot capacity: approx. 2 kg
• Glue heating time: approx. 10 min
• Power supply: 400 V / 50 Hz / 3 Ph + N
• Control voltage: 24 V DC
• Processed edgeband: approx. 737,000 mIntegrated configuration/equipment:
Ksdpfx Afoz Dwlmjgedt
• Automatic edgeband feeding from rolls and strips
• NC-controlled automatic group adjustment
• Automatic program selection and diagnostics
• Production statistics and maintenance software
• Antistatic spraying unit
• Pre-milling unit with 2 × 1.8 kW HF motors
• Glue application and pressure unit
• End trimming unit
• Top/bottom trimming unit
• Corner rounding unit
• Radius scraping unit
• Surface scraping unit
• Textile polishing brushes
• Cleaning liquid spray unit
• Hot air blower

Technical Specification
Feed Speed 18 m/min
